Now for the Software

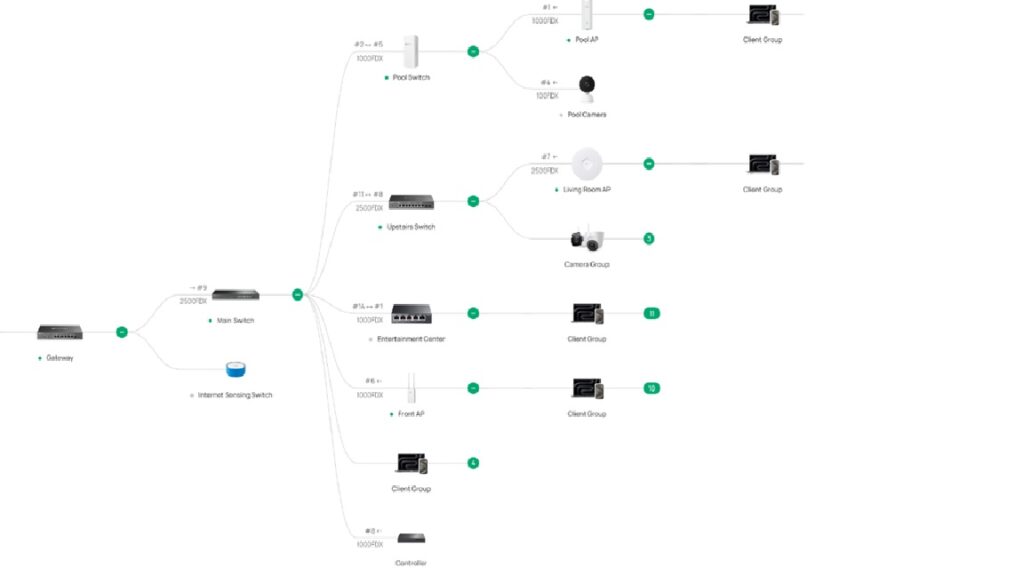

The hardware of the entire new network is in place. Some of you asked for a system diagram. Here is the wiring diagram for the new network:

Now that that is finished, we needed to install the ACL’s and rules. The VLANs are:

• Trusted 10
• IoT Devices 30
• Servers 40
• Guest 50
• Cameras 60
• Network Infrastructure 90

So the rules are simple. This controller handles rules higher in the list as being higher priority. For that reason, you list exceptions first, and general rules second. With that being said:

• Permit Guest network clients to contact the printer
• Allow my Zigbee hub to contact the server (TCP only)
• Allow Trusted Devices to contact Infrastructure
• Allow Cameras to contact Server
• Allow Trusted Devices to call Server
• Deny Guest network to all other networks
• Dent IoT network to all other networks
• Deny Cameras to other networks
• Deny Cameras to Internet
• Deny other networks to Infrastructure

That is the network. I set the network up like this, and everything seems to have been working well for the past week. I am sure that I will add other rules as things go on, but that is what I have for now. Once a week, the entire contents of the server are encrypted and sent to a backup server that’s stored in the house of a friend. That way, I have a copy of everything important in the event I lose access to all of my data here. Since it’s the Internet, that person and my backup data can literally be anywhere.

Then I installed AdGuard, which is my own private DNS running on the server. It allows me to control which clients on the network can interact with my network. It lets me block malware, spyware, and all sorts of advertising. About 30% of the DNS requests originating from my house are things I don’t want phoning home.

There is a VPN built into the system that allows me to hide my traffic from as many people who don’t have reason to see it as possible.

Then the surveillance software went in. The software was Surveillance Station and is running on the Synology rack server. It is recording a single PTZ and several fixed cameras, all in 8mp. It’s been running for ten days and I haven’t even used 2tb of my 7.8tb of storage so far. I think I have plenty of recording time. My goal was for 30 days’ retention, but it looks like I will get more than 60 days out of it.

Then there is physical security provided by Home Assistant. That includes sensors for motion, doors and windows, as well as a link to my smoke detectors. Different events cause different actions. Motion in a give area causes Home Assistant to take a snapshot of the area through the nearest security camera and send it to my cell phone as a text message. It can remind me that I forgot to close the door on the way out, other things like that.

The best part is that all of it, every piece, is owned by me. Amazon doesn’t decide to send my camera video to the cops. My ISP and their DNS server doesn’t need to know what websites I frequent. My devices don’t need to be reporting to data brokers what happens in my house.

Is it foolproof? Nope. Will it stop nearly all of the bullschnozzle? probably. Will it stop a determined, talented electronic wizard? Probably not.

It’s still far better than what I had three months ago. Now you know why I did all of the posts about data mining.
